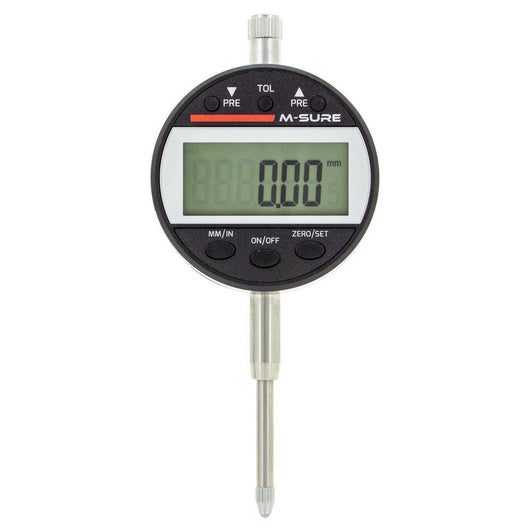

M-SURE MS-410-025 Digital Indicator MS-410 Series 25mm (1 inch)
Checkout with
- 25mm (1 inch) range MS-410 Series Digital Digital Indicator
- 0.01mm (0.0005 inch) resolution. 0.03mm (0.001 inch) accuracy
- Conforms to Factory/Manufacturers Standard
- UKAS Calibration Available
- The indicator has a Standard Front Facing display. With a 9 character height
- The display is Non-Rotating/Fixed
- Holding method Indicator Stem. Indicator stem diameter 8mm H7
- M2.5 x 0.45 thread contact. The measuring force n/aN
The MS-410 Series 25mm (1 inch) offers the standard functions of Auto Power Off, Tolerance's, Zero, Data Output, Auto wake, Inch/ Metric Conversion, On/ off Along with advanced functions such asCabled Data Output, ABS/INC.
The Indicator display , Non-Rotating/Fixed

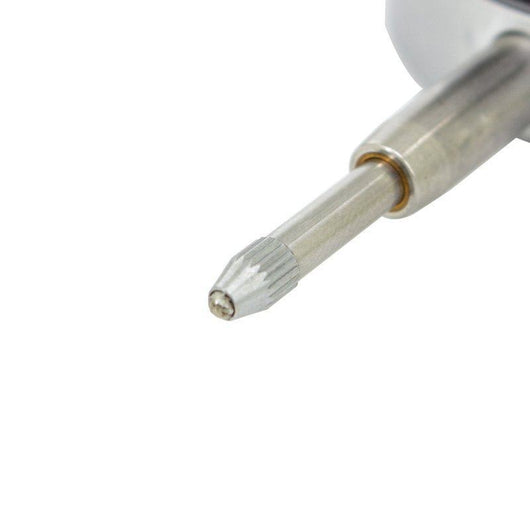

The plunger measuring force is , the contact point has a M2.5 x 0.45.
Additional Information
Key Specifications
Range: - 25mm (-1 inch)
Resolution: 0.01mm (0.0005inch)
Accuracy: 0.03 mm (0.001inch)
Stem Diameter:
Holding Method: Indicator Stem

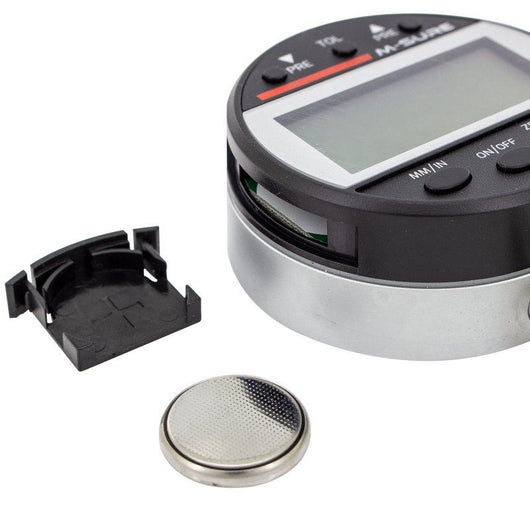

Battery Type: CR2032

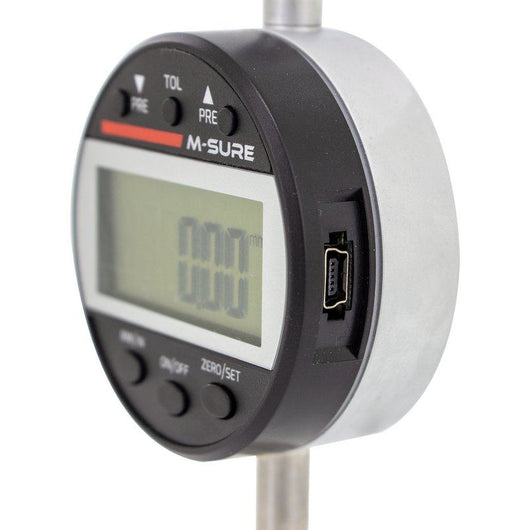

Data Output: Cabled
Product Contains
1 x Digital Indicator
1 x CR2032 Battery
1 x User Manual
Typical Applications
Inspection Fixtures and Jigs, Calibration, Linear and Rotary Alignment, Mechanical Engineering, Research & Laboratory Applications, Educational and training Sector, Automotive Engineering, Engine Building, Workshop Measurement and more.
Warranty
A full years return to base warranty supplied with this product
Brand Information
The M-SURE brand of Precision measuring Hand Tools and Digital Scales is a result of over 10 years experience gained in selling a wide range of world leading brands, across an extensive range of industry sectors throughout the world. The experience gained across these years, coupled with extensive research and development has led to the release of the M-SURE range of products, that is not only cost effective, but on a par with other leading manufactures with its sleek design, simple and encompassing functionality, and reassuring quality. Combined with our award-winning, UK based technical support and customer service ethic, the M-SURE range is already proving to be a force to be reckoned with.
Product Specifications
| Specification | Details |
|---|---|
| Accuracy e mpe | +/-0.03mm |
| Battery type | CR2032 |
| Contact point thread | M2.5x0.46 |
| Data output | Yes |
| Display type | Digital |
| Functions | Inch/Metric, Zero Reset, On/Off, Low Battery, Offset, Tolerance |
| Lug back | Flat Back |
| Measurement range | 0-25mm (0-1") |
| Measurement units | Metric/Imperial |
| Mpn | 410-025 |
| Product series | Series 410 - Digital Indicators |
| Product sub type | Plunger |
| Resolution | 0.01mm (0.0005") |
| Stem diameter | 8mm |
