Mitutoyo 50mm/ 2" Digital Multi Functional Indicator - MIT-543-554E
Checkout with

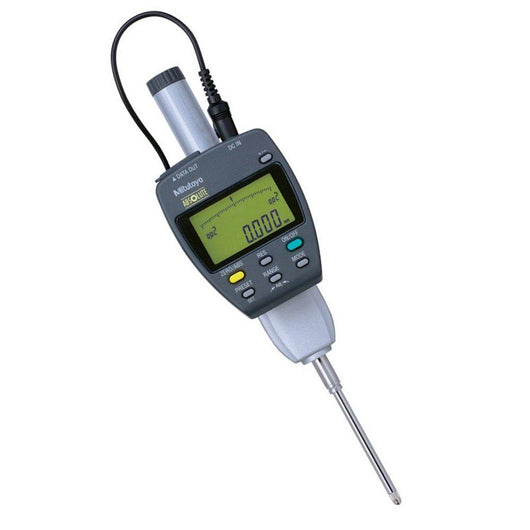

- A back-lit screen type digital indicator, mains-powered
- ABSOLUTE System scale for error free, high-speed measurement
- Functionality includes an analogue bar scale, switchable resolution, colour-coded tolerance judgement, Max/Min data hold and Runout measurement. SPC data output
- With the ABSOLUTE linear encoder technology, once the measurement reference point has been set it will not be lost when the power is turned off

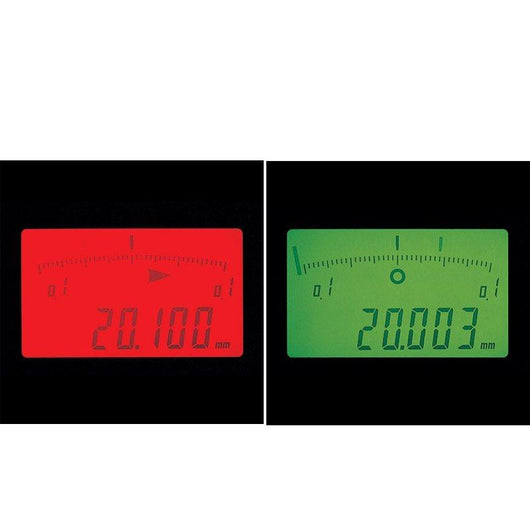

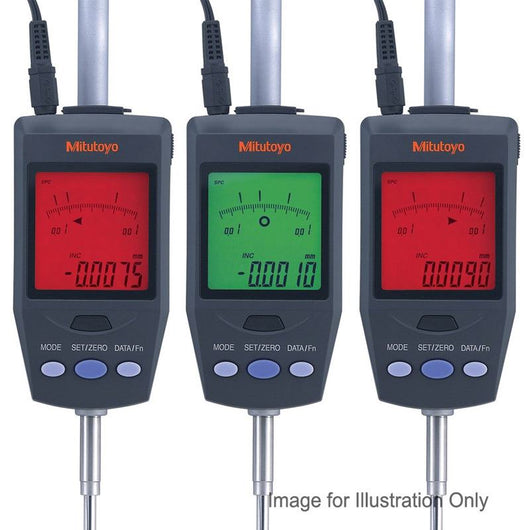

- GO/±NG judgement is performed by setting upper and lower limits. if a judgement result shows an out of tolerance condition, the display backlighting changes from green to red, so tolerance judgement can be made at a glance
- The maximum, minimum, or runout value can be displayed during measurement
- An analog bar indicator is integrated so that visualizing the fall of measurements within limits is as easy as with a dial indicator. The display range of the analog bar can be set to suit the application
Mitutoyo 50mm/ 2" Digital Multi Functional Indicator
With Functions - Preset, Zeroset, GO/±NG judgement, Max/Min value hold, Runout, Resolution switching, Counting direction switching, Power ON/OFF, Data output, Inch/mm readout. Alarm: Counting value composition error, Overflow error, Tolerance limit setting error.
Additional Information
Product Specifications
| Specification | Details |
|---|---|
| Product sub type | Multi Function |
