Mitutoyo Dial Gauge Lug Back ISO Type 5mm 0.01mm 2044A
Checkout with
- Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
- No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
Mitutoyo 2044A Standard Type Series 2 Dial Indicator has an outer frame with an outside diameter of 57mm. All types come with limit pins and an outer frame clamp as standard. Secured adhesion between the outer frame and crystal as well as the use of an O-ring ensure countermeasures against water and oil permeation via the front face. The stem spindle is made of high-strength quench-hardened stainless steel which resists strenuous use and a carbide contact point is used. The grand gear uses stainless steel that is resistant to wear and deformation an application of hard coating on the surface of the crystal makes the gauge highly scratch as well as chemical resistant. This model has a Lug Back with a range of 5mm and 1mm per revolution, 0.01mm graduation and 0-100 Dial Reading with an 8mm Stem., The Mitutoyo “A” Series Dial Indicators have scratch resistant, anti-glare coated crystals just like our popular Test Indicators. They also have a standardized stop screw thread to M2.5x0.45, increased mounting stem length*, a redesigned spindle for waterproof models allowing for additional contact points to be used, a tapered hand/pointer base which makes repairs easier when needed, tolerance clips are now optional, a change in stop screw shape*, and the bezel and dust cap colors are black.
Key Specifications
Range: 5 mm
Range per rev.: 1 mm
Graduation: 0.01 mm

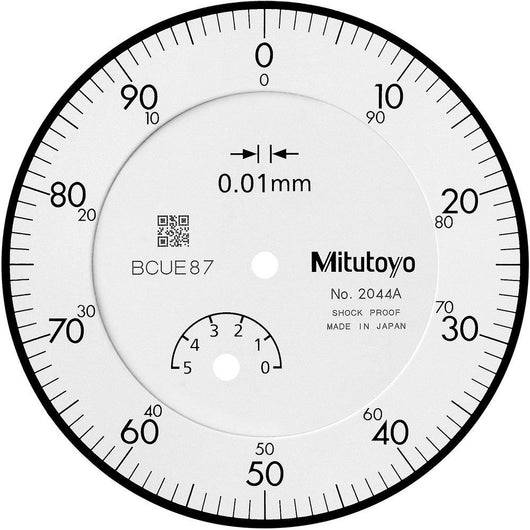

Scale: 0-100 (100-0)
MPE any 1/10 revolution: 5 µm
MPE any 1/2 revolution: 9 µm
MPE any 1 revolution: 10 µm
MPE measuring range: 12 µm
H MPE (Hysteresis): 3 µm
R MPE (Repeatability): 3 µm
Measuring force: 0.4-1.4 N
Mass_ 145 g
Continuous dial: Yes
Digital/Analog_ Analog
Inch-Metric: Metric
Type: EN ISO Standard
Stem: 8 mm
Contact point: Carbide tipped, thread: M 2.5 x 0.45 mm
Delivered: with certificate of inspection
Brand Information
Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments
Product Specifications
| Specification | Details |
|---|---|
| Accuracy e mpe | 0.012mm |
| Accuracy h mpe | 0.009mm |
| Contact point thread | M2.5X0.45 |
| Data output | No |
| Dial scale type | Continuous |
| Display type | Dial |
| Lug back | Lug Back |
| Measurement range | 0-5mm |
| Measurement units | Metric |
| Mpn | 2044A |
| Product series | Series 2 - 0.01mm Graduation Dial Inidicators |
| Product sub type | Plunger |
| Repeatability | +/-0.003mm |
| Resolution | 0.01mm |
| Stem diameter | 8mm |
