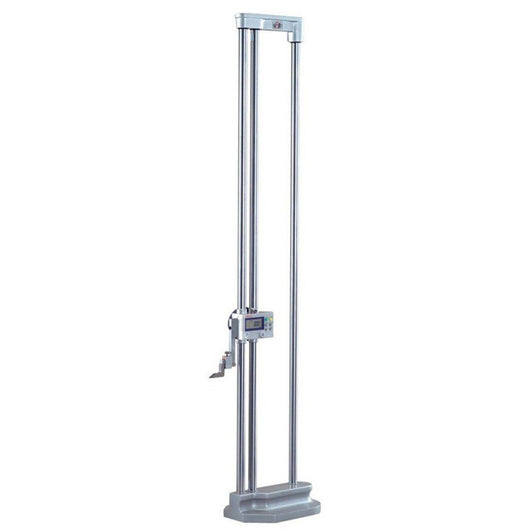

Mitutoyo MIT-192-633-10 Digital Scribing Height Gauge Series 192 1000mm (40 inch)
Checkout with
- 1000mm (40 inch) range Series 192 Digital Digital Scribing Height Gauge
- 0.01/0.005mm (0.0005/0.0002inch) resolution. +/-0.070mm (+/-0.003inch. ) accuracy
- Conforms to ISO 13225 2012, JIS B 7517 2018
- Conforms to ISO 13225 2012, JIS B 7517 2018
- With Double Column Stainless Steel Columns and Ergonomic Cast Iron Base

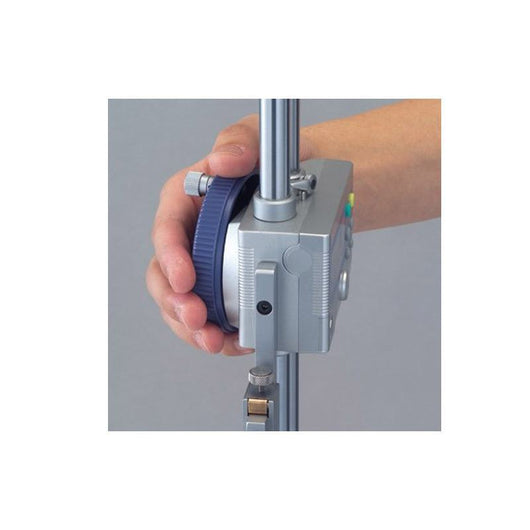

- Fine Adjust Hand Wheel to control the slider movement and Locking Lever
- Carbide scriber tip

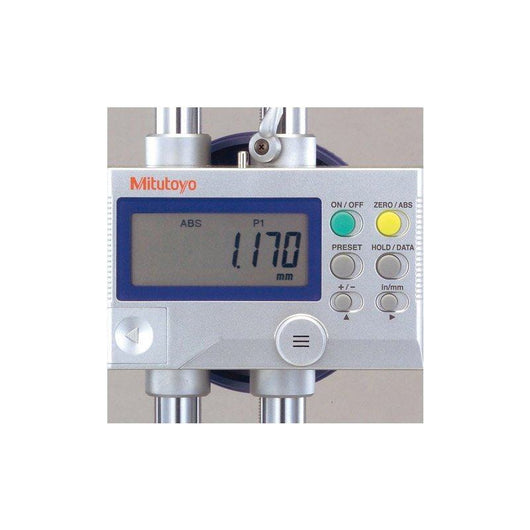

- Functions; Inch/Metric Conversion, On/Off, Auto Power Off, Zero Setting, Low Battery Alert
- Advanced functions; Preset Value, Cabled Data Output, Hold, Direction of Measurement, ABS/INC
The Series 192 1000mm (40 inch) range Digital Scribing Height Gauge offers functions such asInch/Metric Conversion, On/Off, Auto Power Off, Zero Setting, Low Battery Alert. Along with the advanced functions of Preset Value, Cabled Data Output, Hold, Direction of Measurement, ABS/INC. The height gauge has a Double Column Stainless Steel Columns and Ergonomic Cast Iron Base. With a Fine Adjust Hand Wheel to control the slider movement and Locking Lever.
Additional Information
Key Specifications
Range: 1000mm (40 inch)
Resolution: 0.01/0.005mm (0.0005/0.0002inch)
Accuracy: +/-0.070 mm (+/-0.003inch)
Slider Adjustment: Fine Adjust Hand Wheel
Scribe: Carbide
Battery Type: SR44
Data Output: Cabled
Product Contains
1 x Digital Scribing Height Gauge
1 x SR44 Battery
1 x User Manual
Typical Applications
Mechanical Engineering, Product Inspection, Research & Laboratory Applications, Educational and Training Sector, Automotive Engineering, General Machine and Workshop Measurement and more.
Brand Information
Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments
Product Specifications
| Specification | Details |
|---|---|
| Accuracy | +/-0.07mm |
| Base material type | Cast Iron |
| Battery life | Approx. 3500 hours |
| Battery type | SR44 |
| Character height | 11mm |
| Data output | Yes |
| Display type | Digital |
| Functions | Inch/Metric, On/Off, Zero Reset, Low Battery, ABS/INC, Hold, +/- Seitching |
| Measurement range | 0-1000mm (0-40") |
| Measurement units | Metric/Imperial |
| Mpn | 192-633-10 |
| Product series | Series 192 - Digimatic Double Column Height Gauge |
| Product sub type | Double Column - Scribing |
| Resolution | 0.01/0.005mm (0.0005/0.0002") |
| Scribe material type | Carbide |
| Thumb roller type | Hand Wheel |
