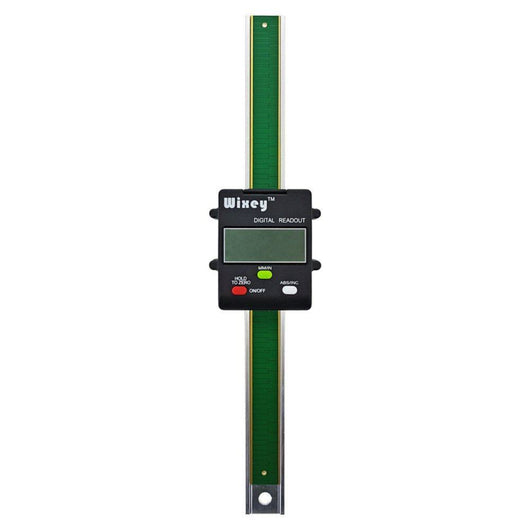

Wixey WR503 Digital Linear Scale 0-165mm (0-6.5")
Checkout with
- Thin and precise easy to adjust cross-hairs
- 0.05mm (0.0015inch) resolution. 0.1mm (0.004inch. ) accuracy
- Displays in inches with fractions or millimeters
- The scale beam is constructed from Stainless Steel, Hardened and Ground.
- The Digital display is to the scale beam.
- Mounts to any drill press
- Standard Functions; Inch/Metric Conversion, Auto Power Off, Zero Setting, Low Battery Alert
- Data Hold, Inch fractions, ABS/INC

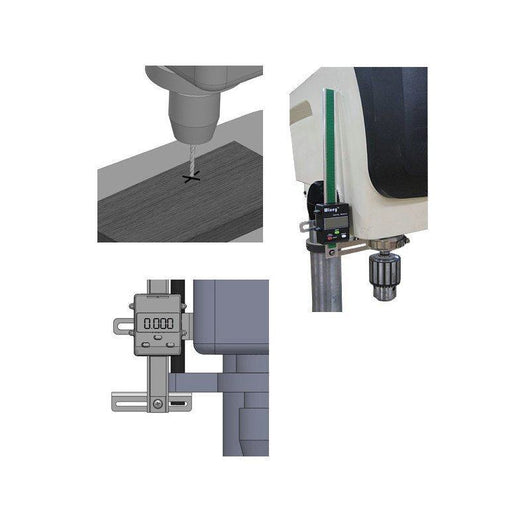

This device allows the user to quickly set the readout to read 0.00 where the drill bit first contacts the work piece and then measures the hole depth as the drill is lowered.
Additional Information
Key Specifications
Range: 165mm (6.5 inch)
Resolution: 0.05mm (0.0015inch)
Accuracy: 0.1 mm (0.004inch)
Slider Adjustment:
Scribe:
Battery Type: CR2032
Data Output: No
Product Contains
1 x Vertical
1 x CR2032 Battery
1 x User Manual
Typical Applications
Mechanical Engineering, Product Inspection, Research & Laboratory Applications, Educational and Training Sector, Automotive Engineering, General Machine and Workshop Measurement and more.
